Your vision. In your hands.
Original view-camera design.
Precise control of perspective and focus.
Selected Equipment
The TC191 and selected interfaces for your camera system.
-
MicoMova TC191 Mini-Fachkamera mit umfassenden Verstellmöglichkeiten
Price range: $3,990 through $4,340Select options This product has multiple variants. The options may be chosen on the product page -
-
-

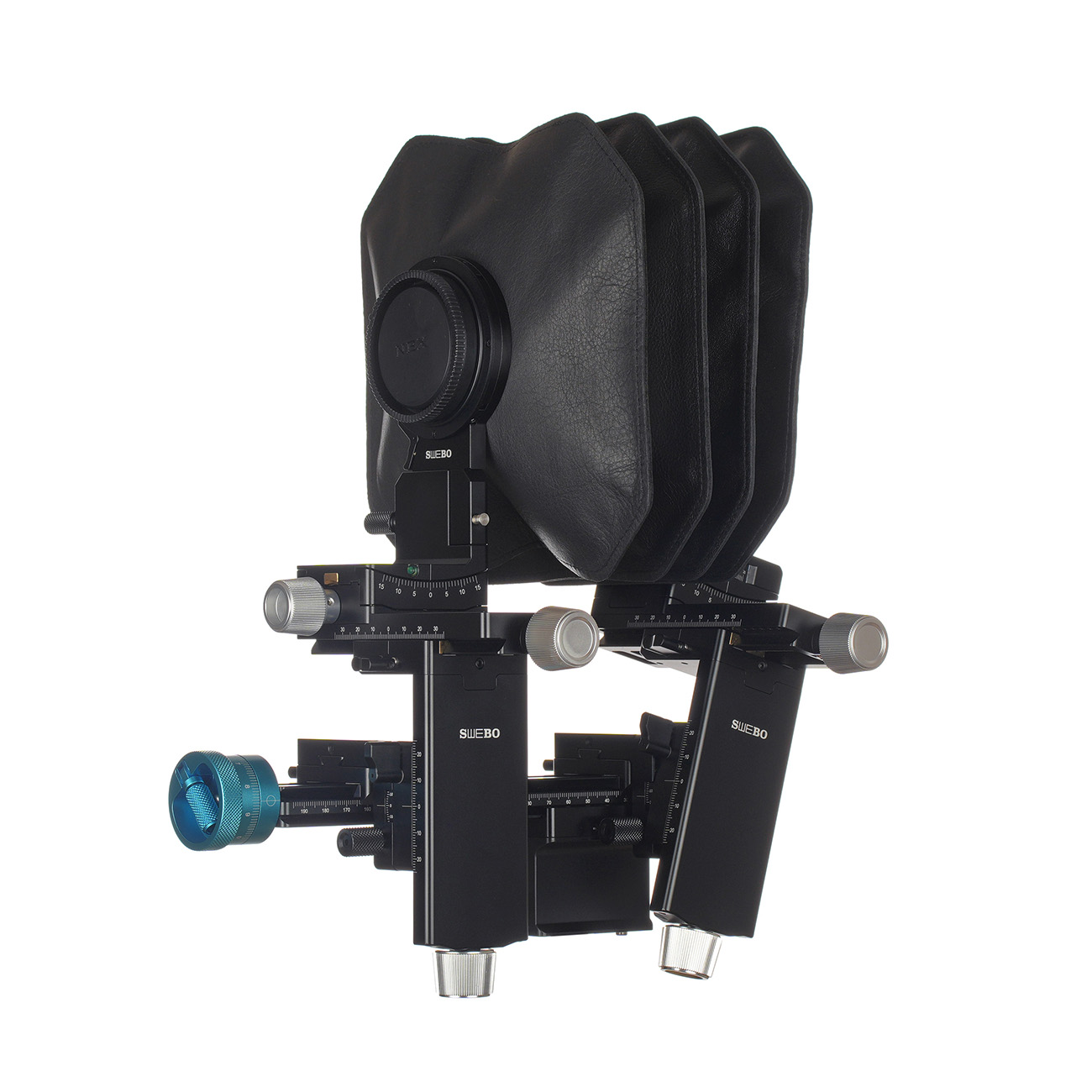

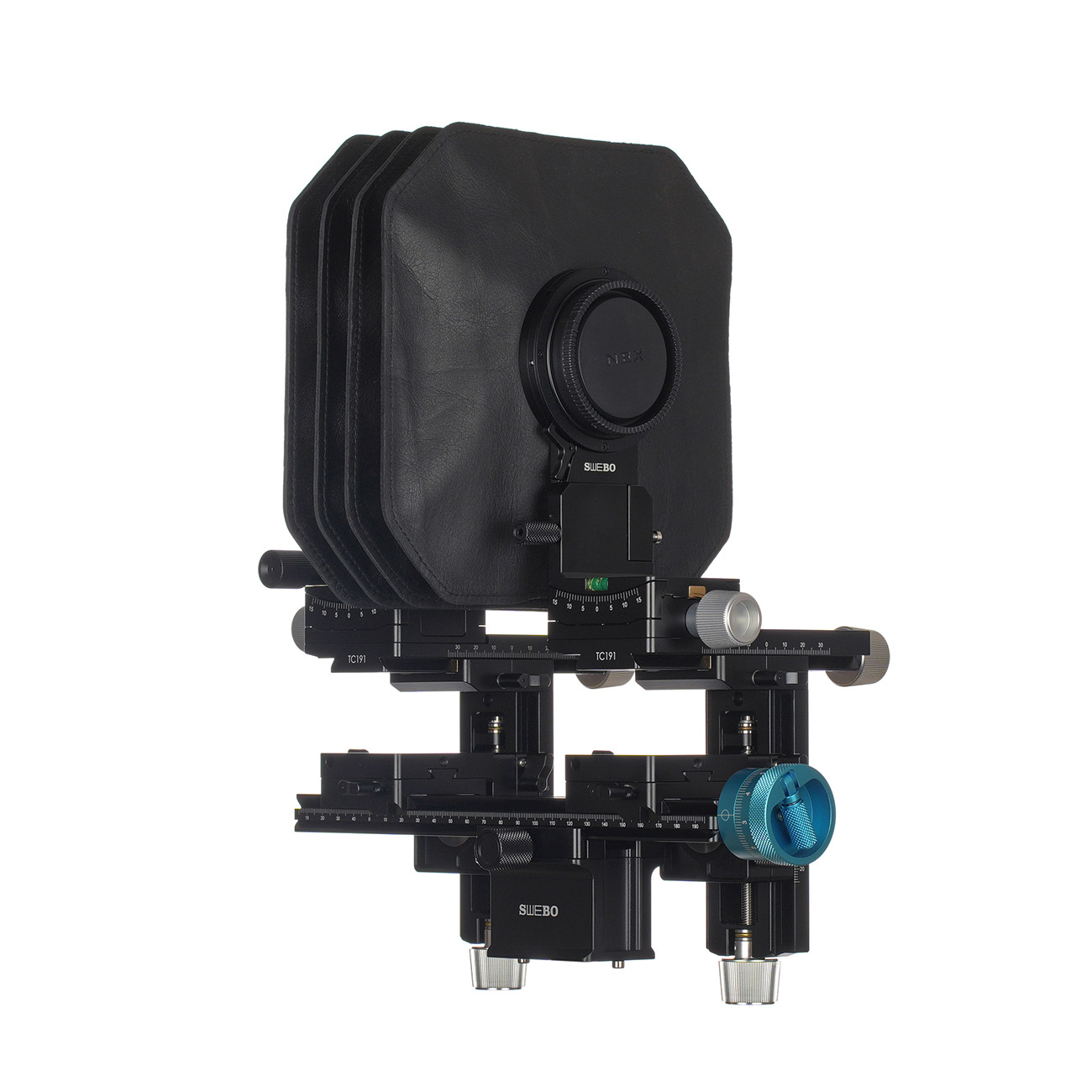

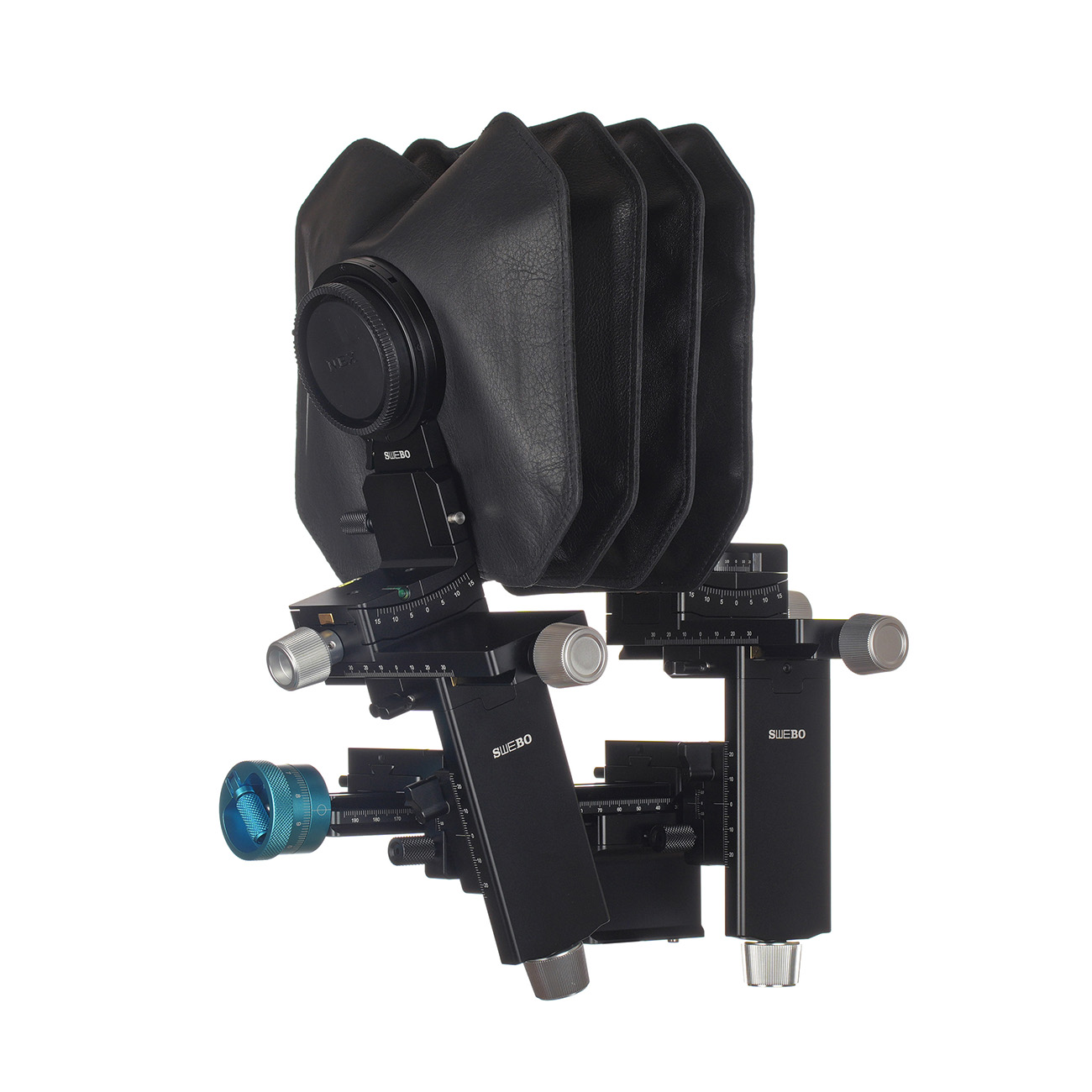

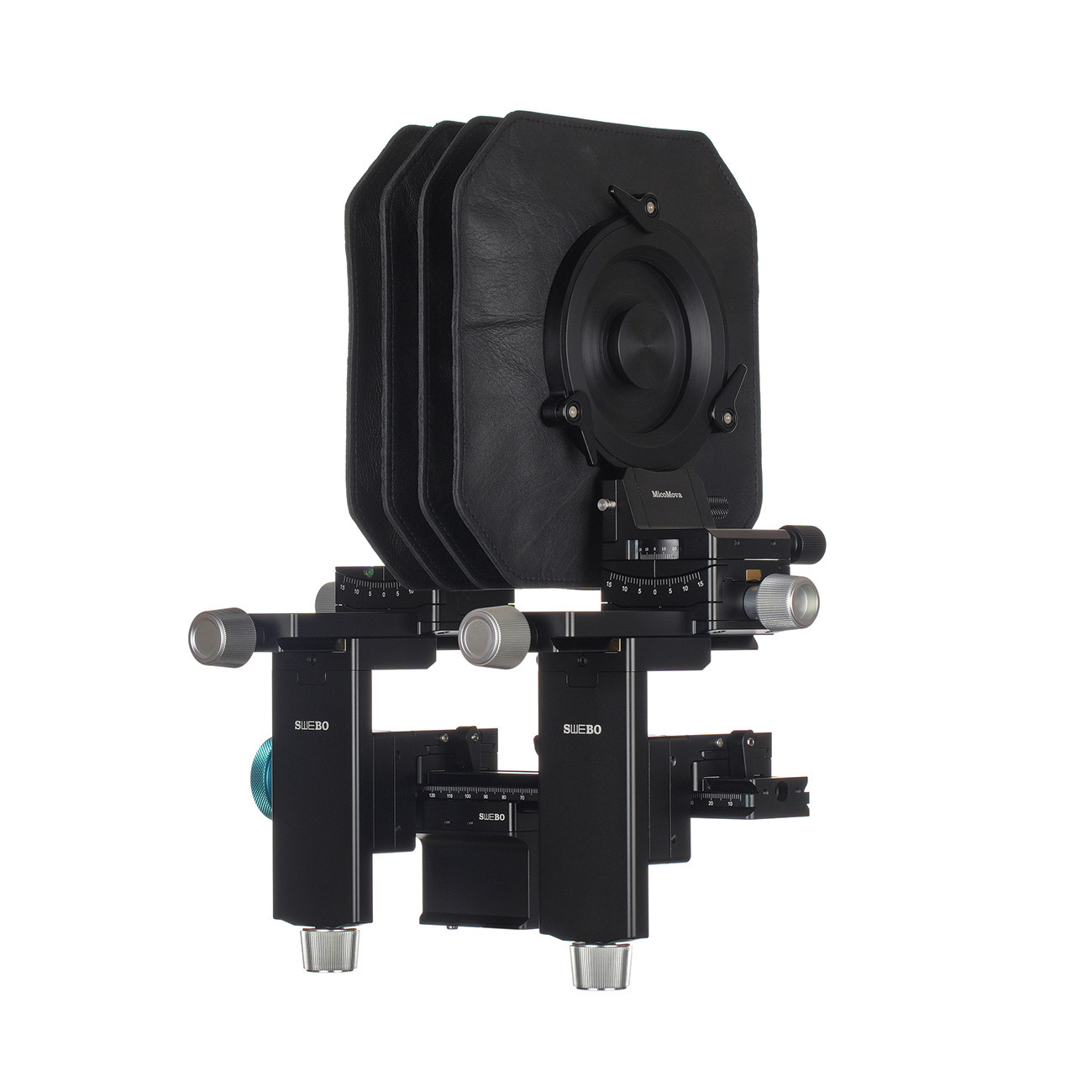

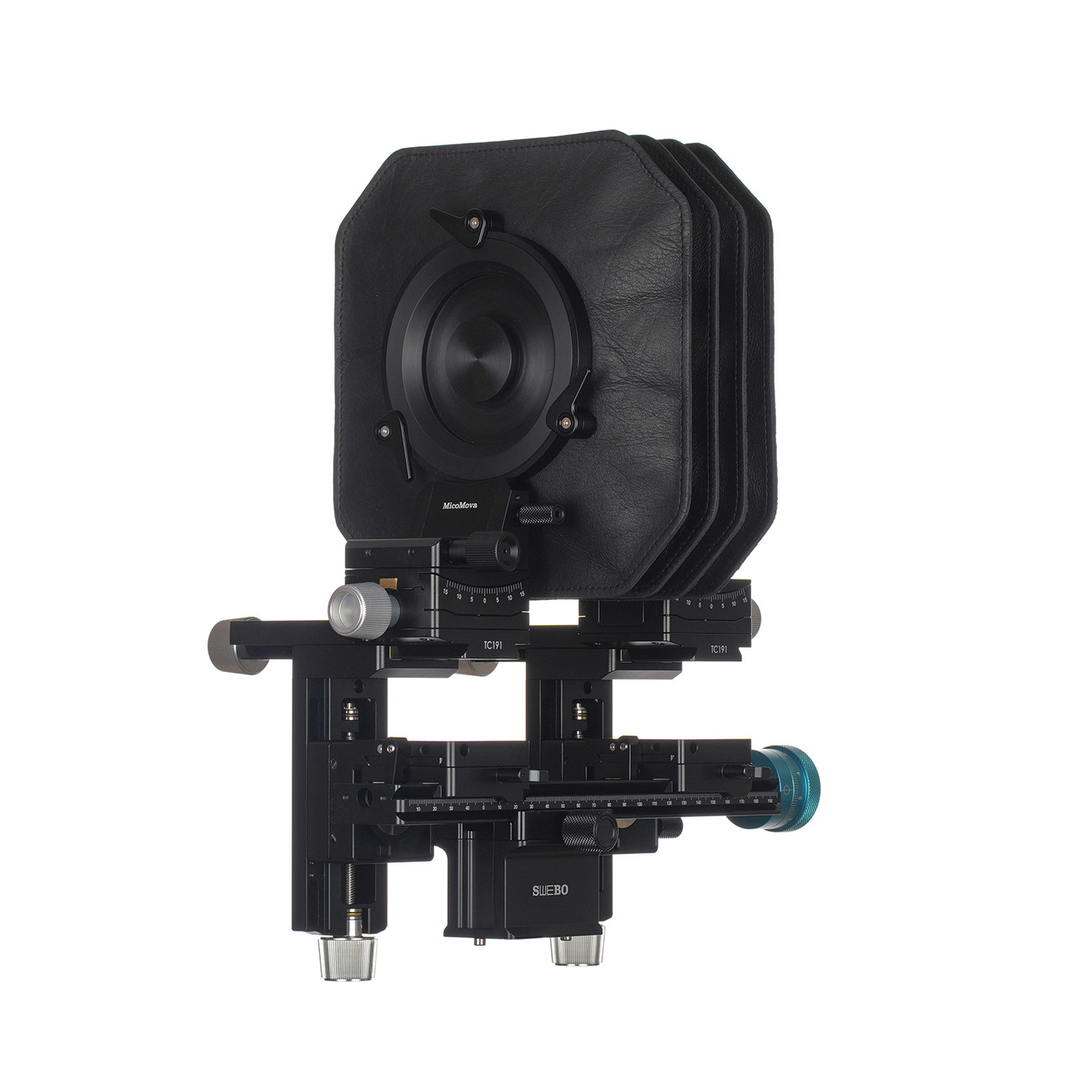

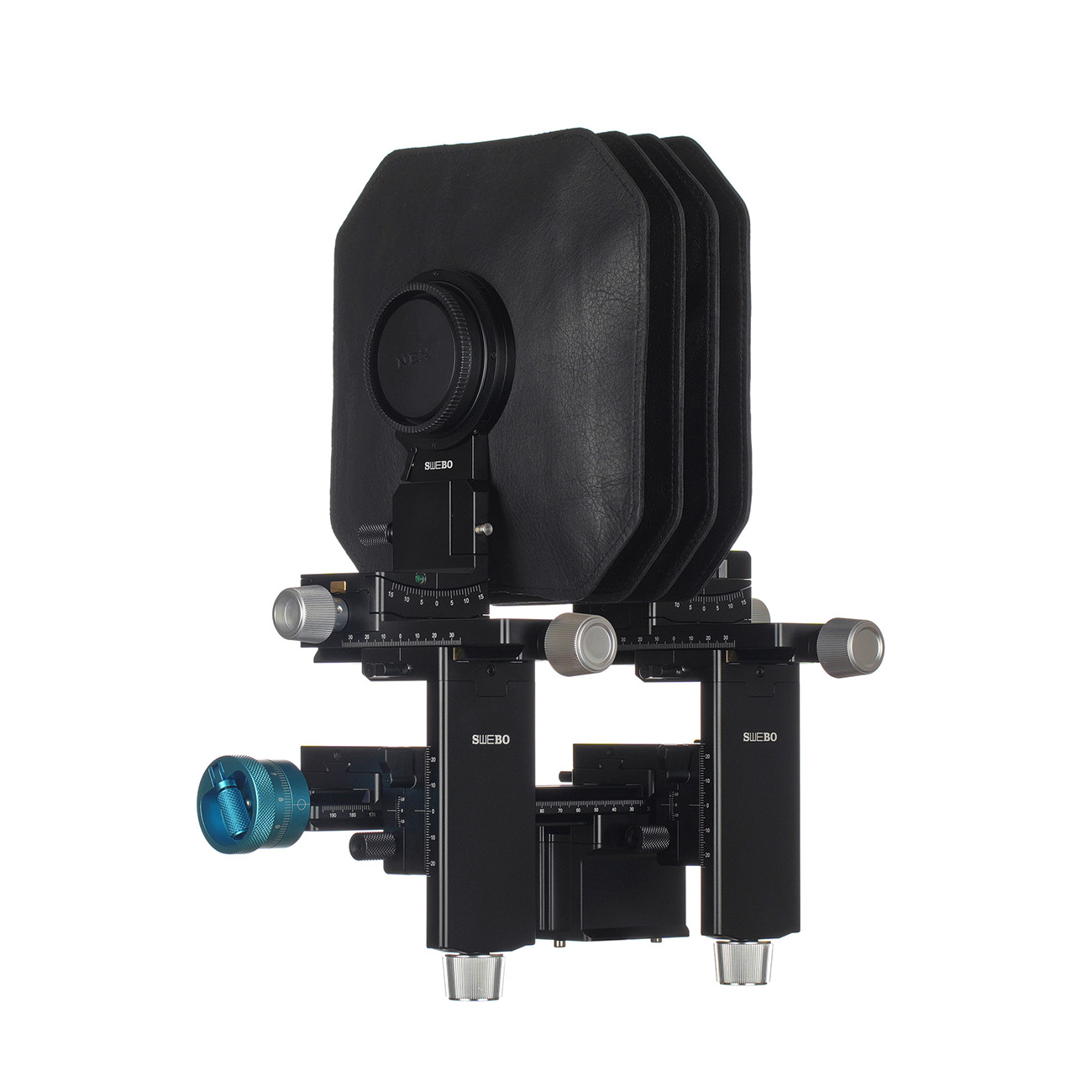

TC191
Set the focus plane. Refine the frame.
An original mini view camera for architecture, landscape and commercial still life. Independent front and rear movements give you considered control over perspective, focus and composition. A limited edition, exclusive to MicoMova.
Freedom to compose after tilt
Independent front and rear whole-standard tilt, each ±20°, inclines the shift mechanisms. After Scheimpflug focusing, the rear standard can shift within the inclined sensor plane to refine the frame.
With the lens fixed and the rear standard moving only within its sensor plane without changing orientation, the established focus relationship is preserved.
Explore the TC191 designDistinct movements. Deliberate control.
Shift, rise and fall
Each standard offers ±35 mm horizontal shift and ±25 mm rise/fall, giving you independent room to refine composition.
Swing and tilt
Each standard offers ±20° swing and ±15° tilt, separate from the whole-standard tilt mechanisms.
Yaw-free movement
With the rail inclined and the standards returned to vertical, horizontal swing avoids introducing additional skew, reducing repeated corrections.
From fine focus to portrait orientation.
Mechanical control that supports the way you work.

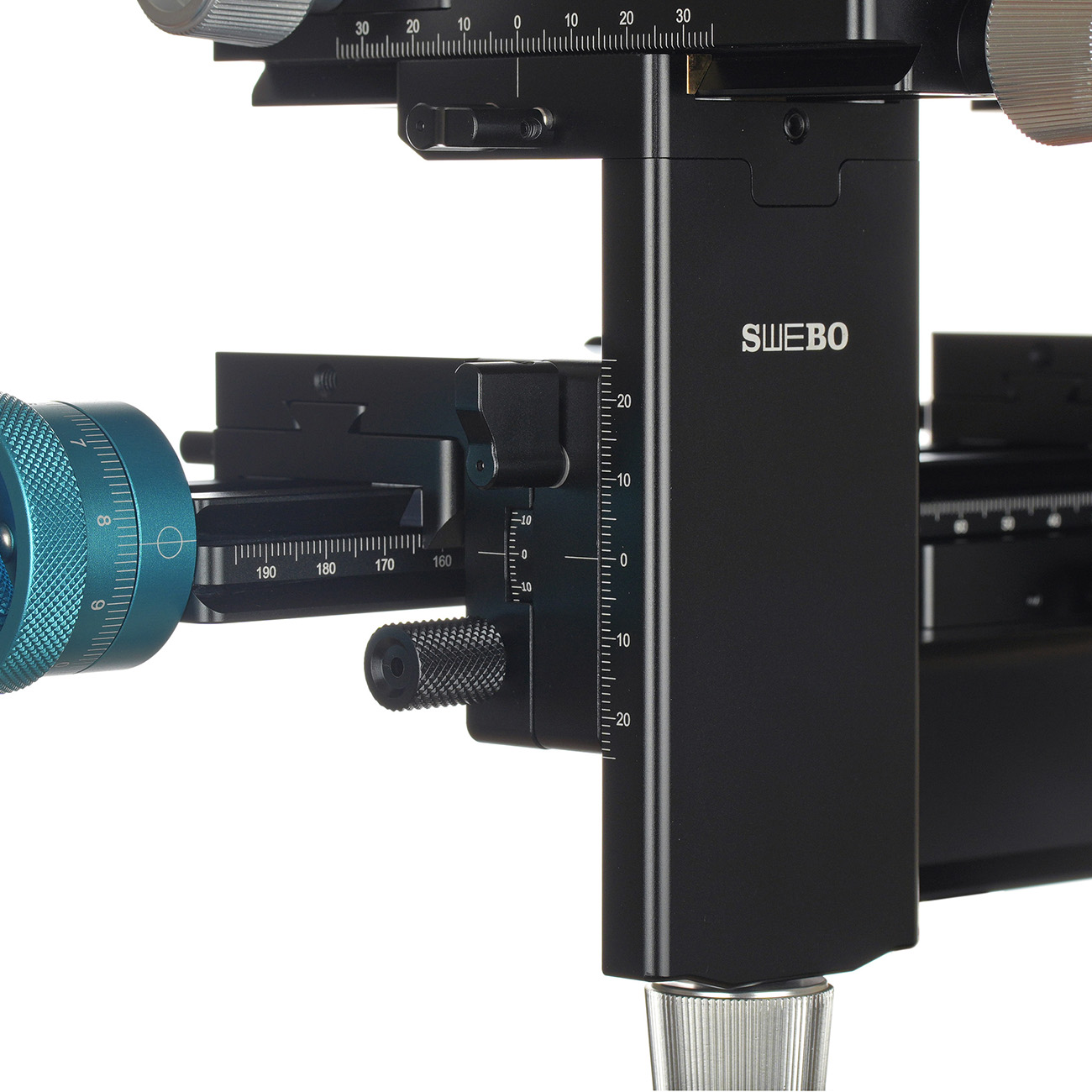

0.04 mm per dial division
Lead-screw focusing uses a micrometer-style dial. Each division represents 0.04 mm of linear travel—a graduation increment, not measured positioning accuracy.
Quick 90° rear rotation
Rotate the rear interface 90° and lock it for portrait or landscape composition. Matching bellows and adapters connect compatible camera bodies or digital backs.
The TC191 separates into 4 modules without tools for packing and reassembly. A protective carrying case is included. The current configuration includes the main unit, a 250 mm rail, four-fold bellows, one camera/back adapter and one lens interface matched to your selection. Camera, lens and tripod head are not included.
Choose your TC191 configurationBuild around the equipment you use.
Extend TC191 for another camera body, more lenses or existing lens boards. These are optional additions; extra adapters and upgrades are not included unless specified.
Camera & back adapters
Choose the interface for your camera or digital back. GFX, Hasselblad X and L-Mount use Type II bellows; supported digital backs use Type III.
Explore options
Matching four-fold bellows
TC191 currently supports four-fold bellows only. Moving between Type I, II and III systems requires both matching bellows and adapter.
Explore options
Boards for your lenses
Options cover Copal shutters, medium-format lenses and threaded mounts. Check the mounting specification, thread pitch and physical clearance.
Explore options
Keep your existing boards
Matching adapters accept Linhof 96×99 mm, Horseman 80×80 mm or Sinar 140 mm lens boards, retaining your existing mounting arrangement.
Explore optionsInfinity focus and usable movements depend on flange distance, clearance, image circle and bellows. Mechanical compatibility does not imply electronic control. Contact us about less common interfaces.
More tools for precise composition
ND252 Cube head
Quick tilt and geared fine adjustment combine broad positioning with precise horizon and tilt control.
Explore ND252
LS18R macro rail
Lead-screw travel and an independently rotating clamp support close-up framing and manual focus stacking.
Explore LS18RStay in Touch
For product information and compatibility enquiries, contact info@micomova.com.
